A Guide to Checking Your Dell Laptop Hardware and Software Information on Ubuntu 22.04
To Nha Notes | Feb. 25, 2024, 3:53 p.m.
Use the following commands on an Ubuntu laptop to check the hardware information of a Dell laptop.
sudo dmidecode -t bios
sudo dmidecode -t system
sudo dmidecode -t baseboard
sudo dmidecode -t chassis
sudo dmidecode -t processor
sudo dmidecode -t memory
sudo dmidecode -t cache
sudo dmidecode -t connector
sudo dmidecode -t slot
Check System
sudo dmidecode -t system
# dmidecode 3.3
Getting SMBIOS data from sysfs.
SMBIOS 3.2.1 present.
Handle 0x0001, DMI type 1, 27 bytes
System Information
Manufacturer: Dell Inc.
Product Name: Vostro 5481
Version: Not Specified
Serial Number: 5P06LT2
UUID: 4c4c4544-0050-3010-8036-b5c04f4c5432
Wake-up Type: Power Switch
SKU Number: 08A7
Family: Vostro
Handle 0x000B, DMI type 12, 5 bytes
System Configuration Options
Option 1: Default string
Handle 0x000C, DMI type 15, 35 bytes
Check CPU
sudo dmidecode -t processor
# dmidecode 3.3
Getting SMBIOS data from sysfs.
SMBIOS 3.2.1 present.
Handle 0x0035, DMI type 4, 48 bytes
Processor Information
Socket Designation: U3E1
Type: Central Processor
Family: Core i7
Manufacturer: Intel(R) Corporation
ID: EB 06 08 00 FF FB EB BF
Signature: Type 0, Family 6, Model 142, Stepping 11
Flags:
FPU (Floating-point unit on-chip)
VME (Virtual mode extension)
DE (Debugging extension)
PSE (Page size extension)
TSC (Time stamp counter)
MSR (Model specific registers)
PAE (Physical address extension)
MCE (Machine check exception)
CX8 (CMPXCHG8 instruction supported)
APIC (On-chip APIC hardware supported)
SEP (Fast system call)
MTRR (Memory type range registers)
PGE (Page global enable)
MCA (Machine check architecture)
CMOV (Conditional move instruction supported)
PAT (Page attribute table)
PSE-36 (36-bit page size extension)
CLFSH (CLFLUSH instruction supported)
DS (Debug store)
ACPI (ACPI supported)
MMX (MMX technology supported)
FXSR (FXSAVE and FXSTOR instructions supported)
SSE (Streaming SIMD extensions)
SSE2 (Streaming SIMD extensions 2)
SS (Self-snoop)
HTT (Multi-threading)
TM (Thermal monitor supported)
PBE (Pending break enabled)
Version: Intel(R) Core(TM) i7-8565U CPU @ 1.80GHz
Voltage: 1.0 V
External Clock: 100 MHz
Max Speed: 2000 MHz
Current Speed: 1800 MHz
Status: Populated, Enabled
Upgrade: Socket BGA1528
L1 Cache Handle: 0x0032
L2 Cache Handle: 0x0033
L3 Cache Handle: 0x0034
Serial Number: To Be Filled By O.E.M.
Asset Tag: To Be Filled By O.E.M.
Part Number: To Be Filled By O.E.M.
Core Count: 4
Core Enabled: 4
Thread Count: 8
Characteristics:
64-bit capable
Multi-Core
Hardware Thread
Execute Protection
Enhanced Virtualization
Power/Performance Control
Check Memory
sudo dmidecode -t memory
# dmidecode 3.3
Getting SMBIOS data from sysfs.
SMBIOS 3.2.1 present.
Handle 0x0029, DMI type 16, 23 bytes
Physical Memory Array
Location: System Board Or Motherboard
Use: System Memory
Error Correction Type: None
Maximum Capacity: 32 GB
Error Information Handle: Not Provided
Number Of Devices: 2
Handle 0x0036, DMI type 17, 84 bytes
Memory Device
Array Handle: 0x0029
Error Information Handle: Not Provided
Total Width: 64 bits
Data Width: 64 bits
Size: 8 GB
Form Factor: SODIMM
Set: None
Locator: DIMM A
Bank Locator: BANK 0
Type: DDR4
Type Detail: Synchronous
Speed: 2667 MT/s
Manufacturer: 80CE000080CE
Serial Number: 3210FA50
Asset Tag: 02191900
Part Number: M471A1K43CB1-CTD
Rank: 1
Configured Memory Speed: 2400 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: Not Specified
Module Manufacturer ID: Bank 1, Hex 0xCE
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 8 GB
Cache Size: None
Logical Size: None
Handle 0x0037, DMI type 17, 84 bytes
Memory Device
Array Handle: 0x0029
Error Information Handle: Not Provided
Total Width: 64 bits
Data Width: 64 bits
Size: 8 GB
Form Factor: SODIMM
Set: None
Locator: DIMM B
Bank Locator: BANK 2
Type: DDR4
Type Detail: Synchronous
Speed: 2667 MT/s
Manufacturer: 01980000802C
Serial Number: 0AF22E5C
Asset Tag: 05210800
Part Number: 9905711-032.A00G
Rank: 1
Configured Memory Speed: 2400 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: Not Specified
Module Manufacturer ID: Bank 2, Hex 0x98
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 8 GB
Cache Size: None
Logical Size: None
Check Battery
upower -i $(upower -e | grep 'BAT')
native-path: BAT0
vendor: SMP
model: DELL VM73283
serial: 14536
power supply: yes
updated: Chủ nhật, 25 Tháng 2 Năm 2024 16:15:05 +07 (72 seconds ago)
has history: yes
has statistics: yes
battery
present: yes
rechargeable: yes
state: charging
warning-level: none
energy: 9,519 Wh
energy-empty: 0 Wh
energy-full: 11,5254 Wh
energy-full-design: 41,9976 Wh
energy-rate: 0,0114 W
voltage: 12,449 V
charge-cycles: N/A
percentage: 82%
capacity: 27,443%
technology: lithium-polymer
icon-name: 'battery-full-charging-symbolic'

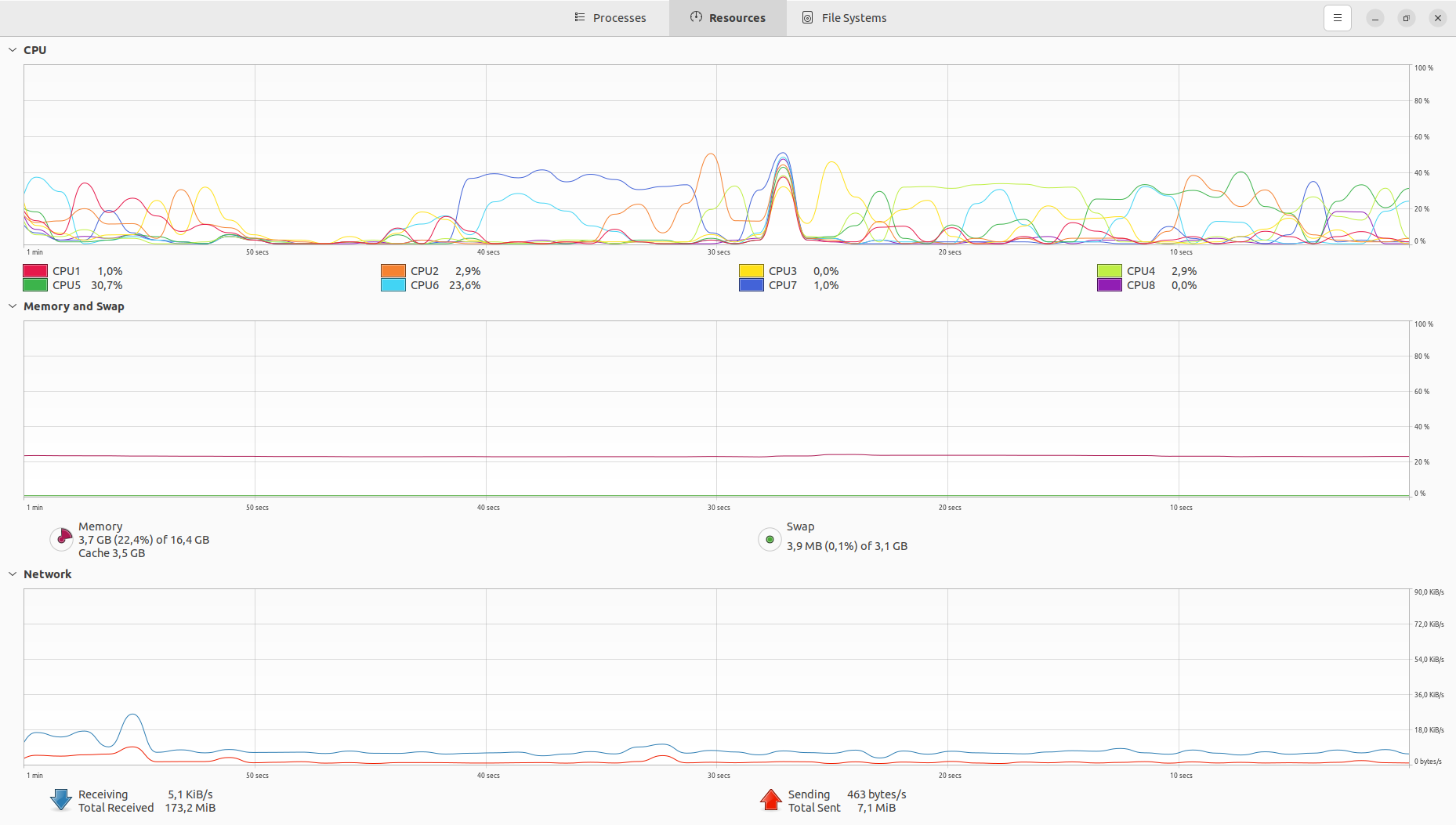

Check Resources
